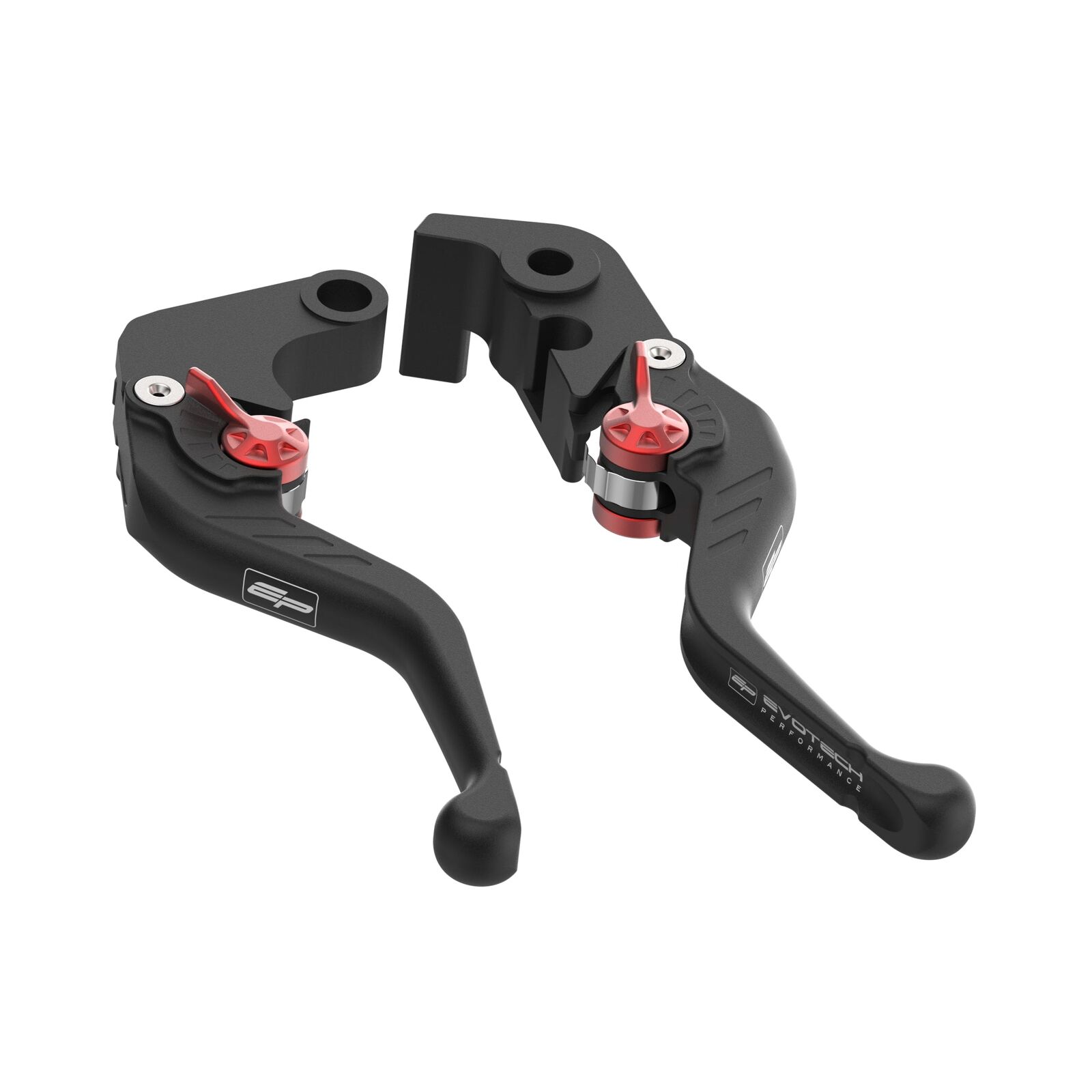

Evotech Evo Short Clutch and Brake Lever set - Triumph Bonneville T120 Black Applies to Triumph. (For the years & models refer to description)

Features of EP Evo Short Clutch & Brake Lever Set

• Designed by Evotech Performance using state of the art design software – and riding experience
• Anatomically correct deep radiused edges along each lever length for comfort, feel and style
• EP EVO lever blades are shorter than the OE equivalents and commonly referred to as “two-finger levers”
• Usable lever width is 55mm approx. to easily accommodate two gloved fingers
• The “short-length” style reduces the chances of contact with a solid object and breaking
• Safeguard “snap point” positioned at lever ball end
• Six-position adjustment span to suit varying finger lengths on both levers via an anodised adjuster
• Lever adjustment position shown via machined indents
• 17mm typical (+/- 1mm) lever span adjustment range (measured at lever midpoint)
• Lever blade and bracket mount union machined from billet aluminium
• Stainless steel CNC-machined clevis pins and retaining clips and, where supplied, piston adjustment screw/barrel and tension retaining spring
• Scalloped machining on lever rear reduces weight while retaining strength
• CNC-machined bracket mount unions ensure a precise and fuss-free install of OE components
• Lever ball-end dimensions meet statutory requirements
• Durable black anodise finish on lever blades and bracket mount unions
• Red durable anodise finish on span adjusters
• Alternative colour (green, silver, blue, black, gold, orange, titanium) span adjusters available from our EP Accessories section
• Levers and bracket mount unions feature Evotech Performance brand logos
• Video fitting instructions available for download

Will these fit my bike and can I fit them myself?

Every EP Evo Short Clutch & Brake Lever Set is manufactured for a specific model i.e. they are not universal due to each make/model having different mountings, clutch cut-out and brake light switches etc. EP Evo Short Clutch & Brake Lever Sets are currently available for 110+ models with more being added daily – so yes, there’s every chance we can supply an EP Evo Short Clutch & Brake Lever Set for your bike. A basic toolkit is all that’s required to replace the OE levers with an EP Evo Short Clutch & Brake Lever Set. Used in conjunction with the Evotech Performance downloadable video instructions, fitting is straightforward.

Why don’t we see shorty levers on a standard motorcycle?

Applies to the Following Bikes

TRIUMPH

Street Triple - Years: 2007, 2008, 2009, 2010, 2011, 2012, 2013, 2014, 2015, 2016

Tiger 800 XC - Years: 2015, 2016, 2017

Tiger 800 XR - Years: 2015, 2016, 2017

Street Cup - Years: 2017, 2018, 2019

Street Triple S - Years: 2017, 2018, 2019

Thruxton T120 - Years: 2016, 2017, 2018, 2019

Tiger 800 XCA - Years: 2018, 2019, 2020

Tiger 800 XCx - Years: 2015, 2016, 2017, 2018, 2019, 2020

Tiger 800 XRT - Years: 2018, 2019, 2020

Tiger 800 XRx - Years: 2015, 2016, 2017, 2018, 2019, 2020

Tiger 1050 Sport - Years: 2013, 2014, 2015, 2016, 2017, 2018, 2019, 2020, 2021

Street Triple R - Years: 2020, 2021, 2022

Bonneville T100 - Years: 2017, 2018, 2019, 2020, 2021, 2022, 2023

Bonneville T100 Black - Years: 2017, 2018, 2019, 2020, 2021, 2022, 2023

Bonneville T120 - Years: 2015, 2016, 2017, 2018, 2019, 2020, 2021, 2022, 2023

Bonneville T120 Black - Years: 2016, 2017, 2018, 2019, 2020, 2021, 2022, 2023

Street Scrambler - Years: 2017, 2018, 2019, 2020, 2021, 2022, 2023

Street Triple 765 R - Years: 2023

Street Twin - Years: 2016, 2017, 2018, 2019, 2020, 2021, 2022, 2023

Daytona 660 - Years: 2024

Speed Twin 900 - Years: 2015, 2023, 2024

Trident 660 Triple Tribute Edition - Years: 2024

Tiger Sport 800 - Years: 2025

Trident - Years: 2021, 2022, 2023, 2025
