Jetprime Motorcycle Power Module for Aprilia RSV4 R RR Factory RF APRC

Jetprime - High Performance Tuning Made Easy

Jetprime Programmable Power Module includes:

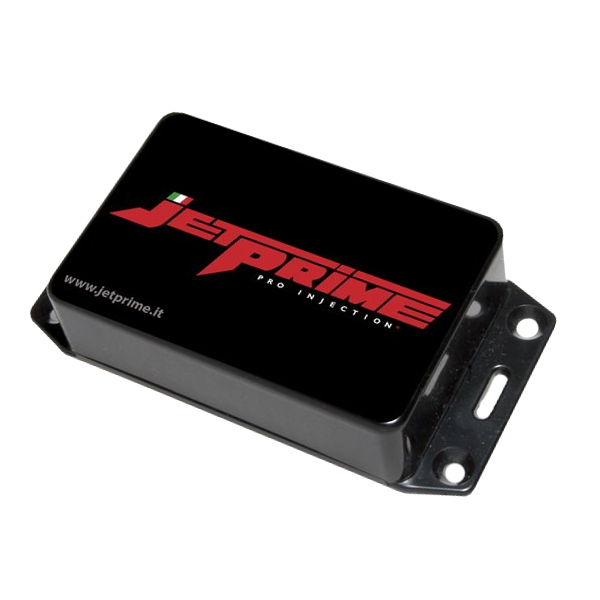

Jetprime Programmable Power Module
Jetprime software
Wiring harness
Fitting and tuning instructions

If you're looking for a easy route to big performance gains, then meet the Jetprime Power Module, the advanced programmable power module from Italy's no.1 performance tuning specialist.

Using technology race-developed in World SBK, the Jetprime Power Module gives you control over your stock ECU's output, allowing you to create an ignition timing map perfectly suited to your bike. Essential if you've invested in an aftermarket exhaust and air filter and wnat to get most out of them.

The Jetprime software features an easy-to-read graphical interface that allows you to create and adjust your map by simply clicking and dragging points on the graph. Once you're happy with the map you've created, you can save it for future use should you make further mods to your bike and need to modify the map again.

If you ever need to return the bike to standard tune for any reason, simply remove the Jetprime module.

So if you want to dramatically improve your bike's performance with minimal fuss, and without the need to reflash your stock ECU, the Jetprime Power Module is the perfect solution.

How Does It Work?

Featuring a Plug and Play system, the Jetprime module connects to the injectors, the air temperature sensor and to the 12v power via the iginition (to ensure there is no power absorption when the ignition is turned off).

Using output from the air temperature sensor is key to the design because it allows the module to modify the ignition timing safely, without risk of damaging the engine should the settings be either incorrect or too high.

Once the module is installed, download the Jetprime software and connect your PC / laptop to the module via USB. Then open the software and use the Search Jetprime button to locate the module. Once the module is located, the next step is to generate a map of the existing injection timing.

To do this, first click on the RPM Monitor button. This starts the communication between the Jetprime power module and the bike's own ECU.

Once the map has been generated, you can proceed to modify and test it as necessary in order to create a new map perfectly suited to your bike.

Prerequisites

PC / laptop with Windows XP, Vista, 7 or 8. Software can also be run on Windows 10 in compatibility mode.Test bench with dyno

Part No. CJP 014R-01

Model compatibility

Aprilia RSV4 R
2009 - 2010

Aprilia RSV4 Factory
2009 - 2010

Aprilia RSV4 R APRC
2011 - 2014

Aprilia RSV4 Factory APRC
2011 - 2014

Aprilia RSV4 RR
2015 - current

Aprilia RSV4 RF
2015 - current

SKU JPCJP014R-01
Brand Jetprime
Shipping Weight 0.5990kg
Shipping Width 0.800m
Shipping Height 0.600m
Shipping Length 0.120m
