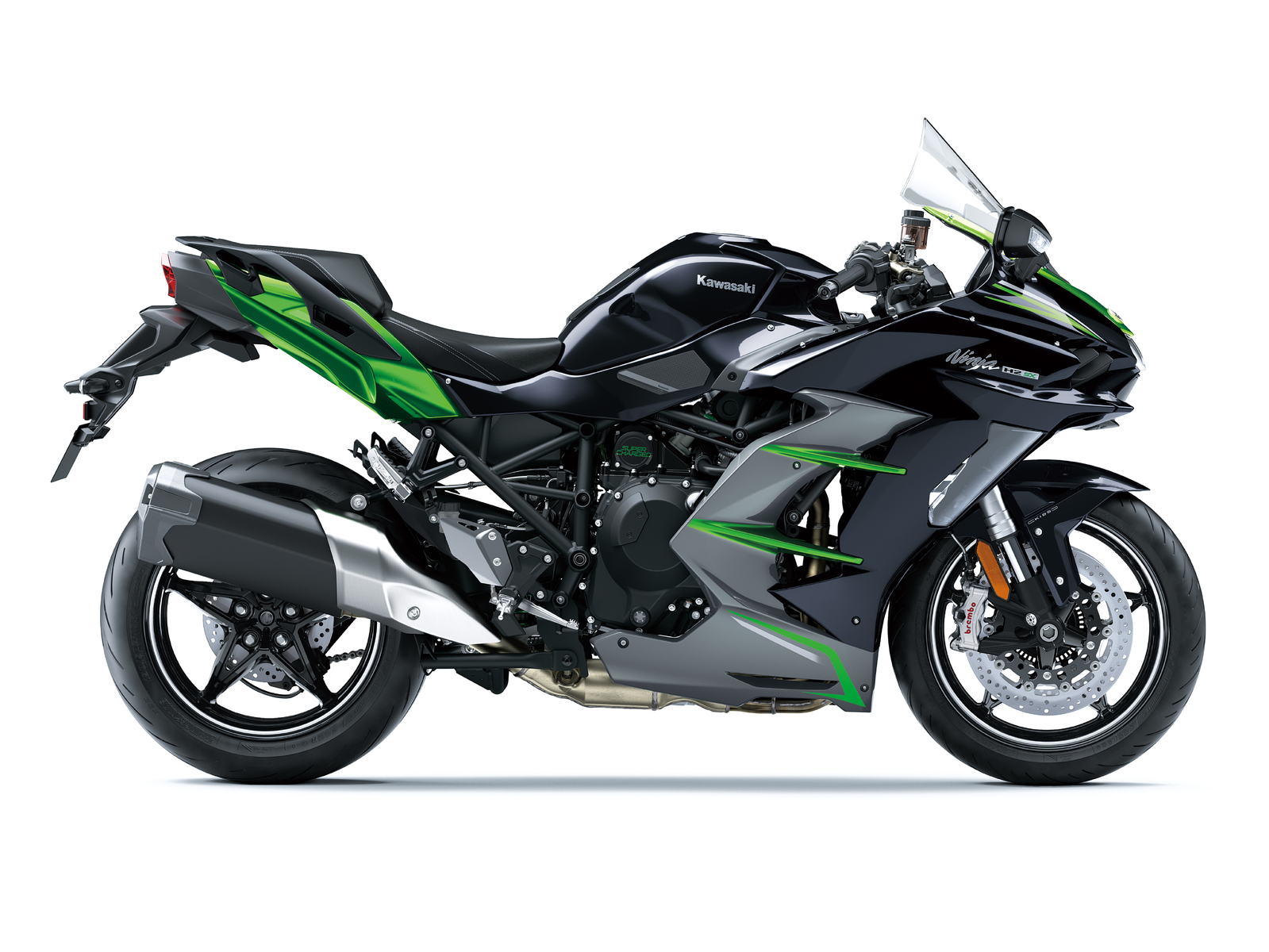

MY24 NINJA H2 SX SE

2024
NINJA H2 SX SE
ADDITIONAL VEHICLE FEATURES:
Kawasaki Electronic Control Suspension (KECS) with Skyhook technology
Vehicle Hold Assist (VHA)
Emergency Stop System (ESS)
Auto High Beam (AHB)
Tyre Pressure Monitoring System (TPMS)
Kawasaki’s Intelligent Proximity Activation Start System (KIPASS)
Kawasaki Rider Support Technology including KCMF, KTRC, KLCM, KIBS, KQS, and KEBC
Integrated Riding Modes
LED cornering lights
Wide seats for increased comfort
USB-style power outlet
Grip heaters
POWER
Maximum Power    147.1 kW {200 PS} / 11,000 rpm
Maximum Power with Ram Air    154.1 kW {210 PS} / 11,000 rpm
Maximum Torque    137.3 Nm {14.0 kgfm} / 8,500 rpm
Engine    4-stroke In-Line Four
Displacement    998 cc
Bore x Stroke    76.0 x 55.0 mm
Compression Ratio    11.2:1
Valve System    DOHC, 16 valves
Fuel System    Fuel injection: ø40 mm x 4 with dual injection
Intake System    Kawasaki Supercharger
Ignition    Digital
Starting    Electric
Cooling    Liquid-cooled
Lubrication    Forced lubrication, wet sump with oil cooler
Transmission    6-speed, return, dog-ring
Primary Reduction Ratio    1.480 (74/50)
Gear Ratio: 1st    3.077 (40/13)
Gear Ratio: 2nd    2.429 (34/14)
Gear Ratio: 3rd    2.045 (45/22)
Gear Ratio: 4th    1.727 (38/22)
Gear Ratio: 5th    1.524 (32/21)
Gear Ratio: 6th    1.348 (31/23)
Final Reduction Ratio    2.444 (44/18)
Clutch    Wet multi-disc, manual
Final Drive    Chain
PERFORMANCE
Frame    Trellis, high-tensile steel, with Swingarm Mounting Plate
Front Suspension    ø43 mm inverted fork with KECS-controlled compression and rebound damping, manual spring preload adjustability, and top-out springs
Rear Suspension    New Uni Trak, BFRC lite gas-charged shock with piggyback reservoir, KECS-controlled compression and rebound damping, and electronically adjustable spring preload
Front Wheel Travel    120 mm
Rear Wheel Travel    139 mm
Rake    24.7°
Trail    103 mm
Steering Angle (L/R)    30° / 30°
Front Tyre    120/70ZR17M/C (58W)
Rear Tyre    190/55ZR17M/C (75W)
Front Brake/s    Dual semi-floating ø320 mm discs
Front Caliper/s    Dual radial-mount, Brembo Stylema monobloc, opposed 4-piston
Rear Brake    ø250 mm disc
Rear Caliper    2-piston
DETAILS
Dimensions (LxWxH)    2,175 x 790 x 1,260 mm
Wheelbase    1,480 mm
Road Clearance    130 mm
Seat Height    820 mm
Curb Mass    267 kg
Fuel Capacity    19 litres
Model Code    ZX1002RRFNN
