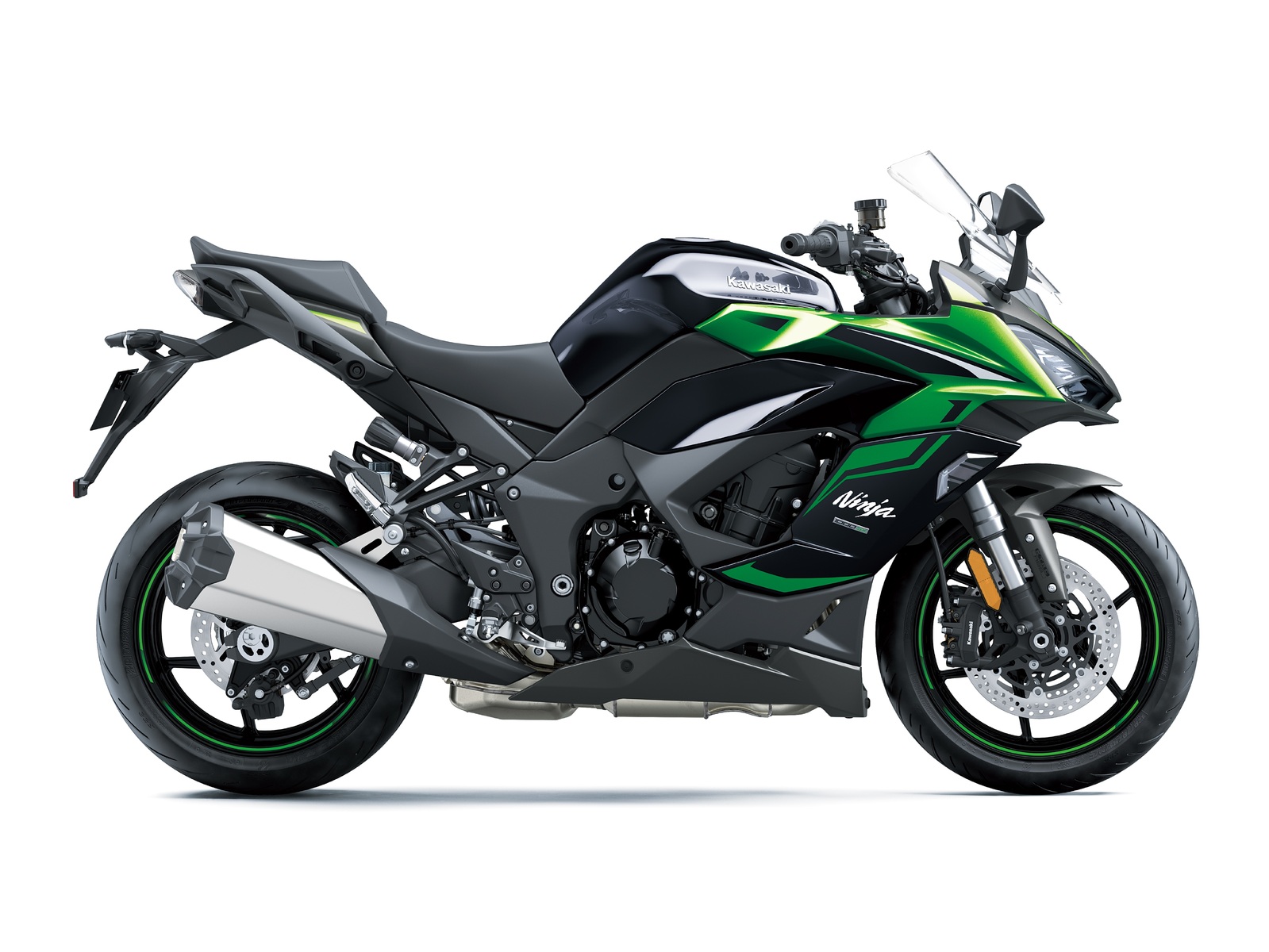

MY24 NINJA 1000SX

OVERVIEW
The Ninja 1000SX has character without compromise. Infused with the Ninja spirit craved by discerning solo sportbike riders, the Ninja 1000SX takes the concept further with SX sport touring versatility to share with a fellow traveler. From traction control to cruise control, the Ninja 1000SX has the tech for the ride.

FEATURING:
DIGITALLY FUEL-INJECTED 1,043 cc IN-LINE FOUR
IMU-ENHANCED ELECTRONICS PACKAGE
KAWASAKI INTELLIGENT ANTI-LOCK BRAKE SYSTEM (KIBS)
KAWASAKI TRACTION CONTROL (KTRC)

POWER
Maximum Power    104.5 kW {142 PS} / 10,000 rpm
Maximum Torque    111.0 Nm {11.3 kgfm} / 8,000 rpm
Engine    4-stroke In-Line Four
Displacement    1,043 cc
Bore x Stroke    77.0 x 56.0 mm
Compression Ratio    11.8:1
Valve System    DOHC, 16 valves
Fuel System    Fuel injection: ø38 mm x 4
Ignition    Digital
Starting    Electric
Cooling    Liquid-cooled
Lubrication    Forced lubrication, wet sump
Transmission    6-speed, return
Primary Reduction Ratio    1.627 (83/51)
Gear Ratio: 1st    2.600 (39/15)
Gear Ratio: 2nd    1.950 (39/20)
Gear Ratio: 3rd    1.600 (24/15)
Gear Ratio: 4th    1.389 (25/18)
Gear Ratio: 5th    1.238 (26/21)
Gear Ratio: 6th    1.107 (31/28)
Final Reduction Ratio    2.733 (41/15)
Clutch    Wet multi-disc, manual
Final Drive    Chain
PERFORMANCE
Frame    Twin-tube, aluminium
Front Suspension    ø41 mm inverted fork with compression and rebound damping and spring preload adjustability
Rear Suspension    Horizontal Back-link, gas-charged shock with rebound damping and remote spring preload adjustability
Front Wheel Travel    120 mm
Rear Wheel Travel    144 mm
Rake    24.0°
Trail    98 mm
Steering Angle (L/R)    31° / 31°
Front Tyre    120/70ZR17M/C (58W)
Rear Tyre    190/50ZR17M/C (73W)
Front Brake/s    Dual semi-floating ø300 mm discs
Front Caliper/s    Dual radial-mount, monobloc, opposed 4-piston
Rear Brake    ø250 mm disc
Rear Caliper    Single-piston
DETAILS
Dimensions (LxWxH)    2,100 x 825 x 1,225/1,190 mm (high/low)
Wheelbase    1,440 mm
Road Clearance    135 mm
Seat Height    835 mm
Curb Mass    235 kg
Fuel Capacity    19 litres
