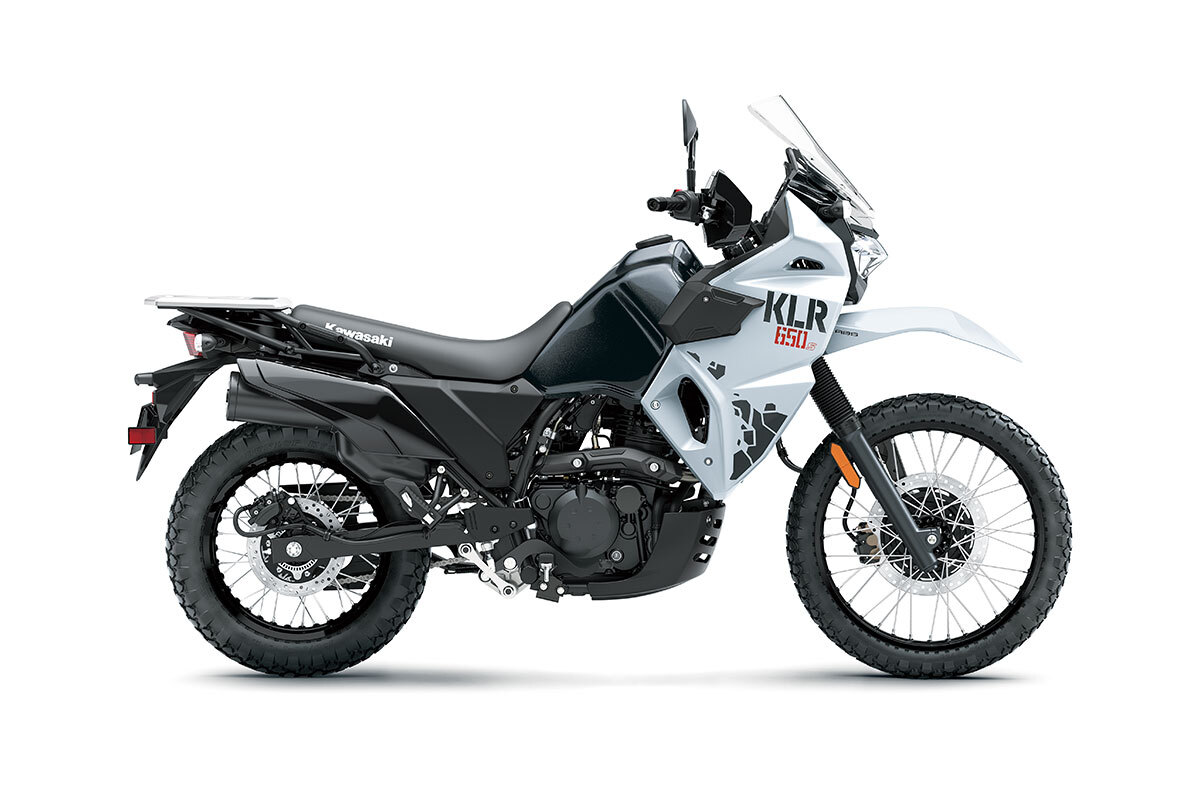

MY24 KAWASAKI KLR650 S

ADDITIONAL VEHICLE FEATURES:
Learner approved model (LAMS)
Lower seat height than the KLR650 (815 mm vs 870 mm)
Seat with optimised urethane for improved comfort
All-digital multifunction instrumentation
Tall, two-position adjustable windshield
Large aluminium rear carrier
Generous generator capacity
Bright LED headlight
POWER
Maximum Power 28.5 kW {39 PS} / 6,000 rpm
Maximum Torque 51.5 Nm {5.3 kgfm} / 4,500 rpm
Engine 4-stroke Single
Displacement 652 cc
Bore x Stroke 100.0 x 83.0 mm
Compression Ratio 9.8:1
Valve System DOHC, 4 valves
Fuel System Fuel injection: ø40 mm x 1
Ignition Transistorised ignition
Starting Electric
Cooling Liquid-cooled
Lubrication Forced lubrication, wet sump
Transmission 5-speed, return
Primary Reduction Ratio 2.273 (75/33)
Gear Ratio: 1st 2.267 (34/15)
Gear Ratio: 2nd 1.444 (26/18)
Gear Ratio: 3rd 1.136 (25/22)
Gear Ratio: 4th 0.955 (21/22)
Gear Ratio: 5th 0.792 (19/24)
Final Reduction Ratio 2.867 (43/15)
Clutch Wet multi-disc, manual
Final Drive Chain
PERFORMANCE
Frame Semi-double cradle, high-tensile steel
Front Suspension ø41 mm telescopic fork
Rear Suspension Uni Trak, single shock with adjustable rebound damping and adjustable spring preload
Front Wheel Travel 170 mm
Rear Wheel Travel 177 mm
Rake 29.5°
Trail 118 mm
Steering Angle (L/R) 44° / 44°
Front Tyre 90/90-21M/C 54S
Rear Tyre 130/80-17M/C 65S
Front Brake/s ø300 mm disc
Front Caliper/s Dual-piston
Rear Brake ø240 mm disc
Rear Caliper Dual-piston
DETAILS
Dimensions (LxWxH) 2,255 x 970 x 1,430/1,395 mm (high/low)
Wheelbase 1,515 mm
Road Clearance 185 mm
Seat Height 815 mm
Curb Mass 210 kg
Fuel Capacity 23 litres
