OVERVIEW

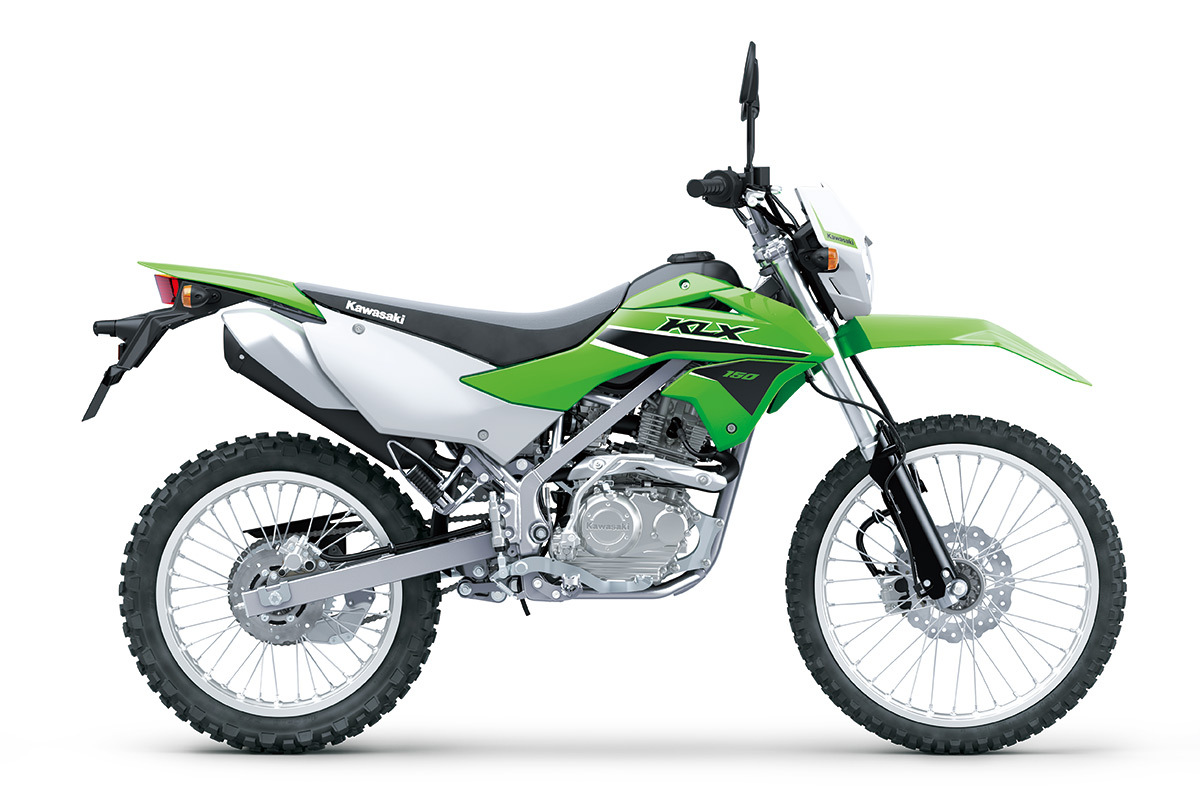

The new KLX150 series offers riding fun in a variety of situations, from urban usage like city riding and commuting to off-road trail rides that excite the adventurous spirit. Its slim, lightweight chassis and reliable air-cooled engine are complemented by a powerful, stylish MX-inspired design reminiscent of a full-fledged enduro motorcycle, making it casually enjoyable for a wide range of riders.

FEATURING:
STRONG, RELIABLE AIR-COOLED 144 cc SINGLE-CYLINDER ENGINE
SLIM, LIGHTWEIGHT CHASSIS
HIGH LEVEL OF OFF-ROAD PERFORMANCE
RACY MX STYLING WITH CLASS-FIRST LED HEADLIGHT
ALL-DIGITAL INSTRUMENTATION

Learner approved model (LAMS)
Full-size wheels (F21?, R18?)
ø35 mm inverted fork with 185 mm of travel

DETAILS
Dimensions (LxWxH) 2,050 x 830 x 1,155 mm
Wheelbase 1,345 mm
Road Clearance 300 mm
Seat Height 865 mm
Curb Mass 118 kg
Fuel Capacity 6.9 litres
Model Code KLX150KRFNN

PERFORMANCE
Frame Perimeter, steel
Front Suspension ø35 mm inverted fork
Rear Suspension Uni Trak, single shock with adjustable spring preload
Front Wheel Travel 185 mm
Rear Wheel Travel 192 mm
Rake 26.9°
Trail 110 mm
Front Tyre 2.75-21 45P
Rear Tyre 4.10-18 59P
Front Brake/s ø240 mm petal disc
Front Caliper/s Dual-piston
Rear Brake ø190 mm petal disc
Rear Caliper Single-piston

POWER
Maximum Power 8.6 kW {12 PS} / 8,000 rpm
Maximum Torque 11.3 Nm {1.2 kgfm} / 6,500 rpm
Engine 4-stroke Single
Displacement 144 cc
Bore x Stroke 58.0 x 54.4 mm
Compression Ratio 9.5:1
Valve System SOHC, 2 valves
Fuel System Carburettor: NCV24
Ignition DC-CDI
Starting Electric & Kick
Cooling Air-cooled
Lubrication Forced lubrication, wet sump
Transmission 5-speed, return
Primary Reduction Ratio 2.880 (72/25)
Gear Ratio: 1st 2.917 (35/12)
Gear Ratio: 2nd 2.000 (32/16)
Gear Ratio: 3rd 1.474 (28/19)
Gear Ratio: 4th 1.182 (26/22)
Gear Ratio: 5th 1.000 (24/24)
Final Reduction Ratio 3.714 (52/14)
Clutch Wet multi-disc, manual
Final Drive Chain
