BIKE IS LOCATED IN SYDNEY CASTLE HILL

**STOCK LEVEL SUBJECT TO MANUFACTURER SUPPLY**

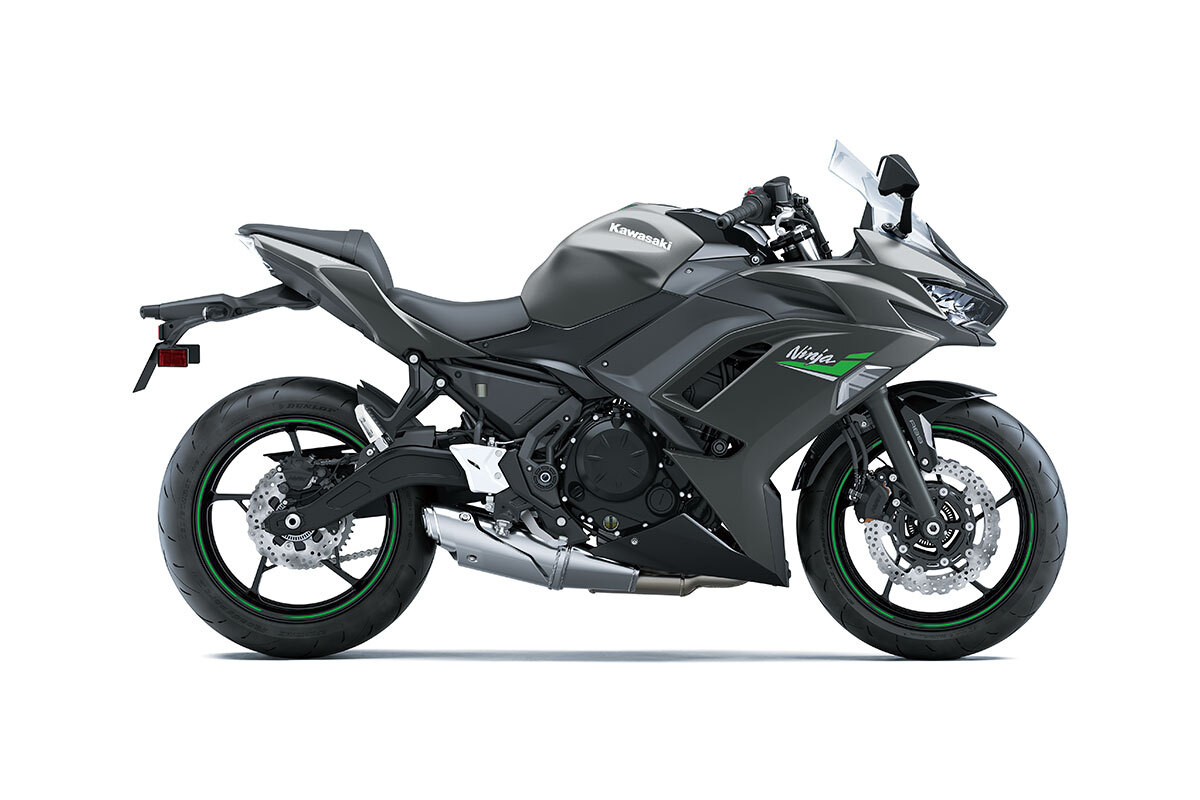

MY24 KAWASAKI NINJA 650L

ADDITIONAL VEHICLE FEATURES:
Learner approved model (LAMS)
Kawasaki TRaction Control (KTRC)
Twin LED headlights
Sharp upper cowl and windshield
Comfortable passenger seat
Dunlop Sportmax Roadsport 2 tyres

POWER
Maximum Power 50.2 kW {68 PS} / 8,000 rpm
Maximum Torque 64.0 Nm {6.5 kgfm} / 6,700 rpm
Engine 4-stroke Parallel Twin
Displacement 649 cc
Bore x Stroke 83.0 x 60.0 mm
Compression Ratio 10.8:1
Valve System DOHC, 8 valves
Fuel System Fuel injection: ø36 mm x 2 with dual throttle valves
Ignition Digital
Starting Electric
Cooling Liquid-cooled
Lubrication Forced lubrication, semi-dry sump
Transmission 6-speed, return
Primary Reduction Ratio 2.095 (88/42)
Gear Ratio: 1st 2.438 (39/16)
Gear Ratio: 2nd 1.714 (36/21)
Gear Ratio: 3rd 1.333 (32/24)
Gear Ratio: 4th 1.111 (30/27)
Gear Ratio: 5th 0.966 (28/29)
Gear Ratio: 6th 0.852 (23/27)
Final Reduction Ratio 3.067 (46/15)
Clutch Wet multi-disc, manual
Final Drive Chain
PERFORMANCE
Frame Trellis, high-tensile steel
Front Suspension ø41 mm telescopic fork
Rear Suspension Horizontal Back-link, single-shock with adjustable preload
Front Wheel Travel 125 mm
Rear Wheel Travel 130 mm
Rake 24.0°
Trail 100 mm
Steering Angle (L/R) 32° / 32°
Front Tyre 120/70ZR17M/C (58W)
Rear Tyre 160/60ZR17M/C (69W)
Front Brake/s Dual semi-floating ø300 mm petal discs
Front Caliper/s Dual-piston
Rear Brake ø220 mm petal disc
Rear Caliper Single-piston
DETAILS
Dimensions (LxWxH) 2,055 x 740 x 1,145 mm
Wheelbase 1,410 mm
Road Clearance 130 mm
Seat Height 790 mm
Curb Mass 192 kg
Fuel Capacity 15 litres
Model Code EX650SRFNN
